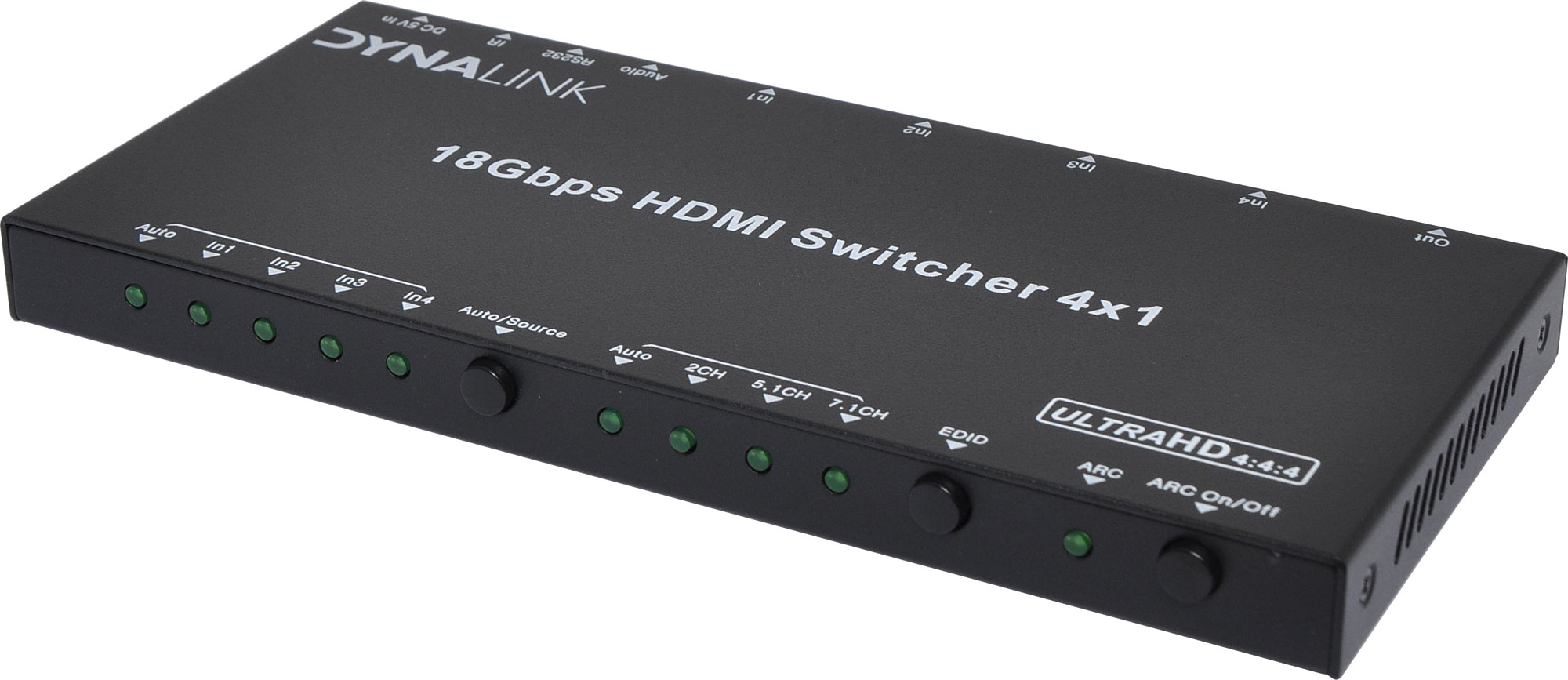

4 Way 4K HDMI Switcher With Audio Extractor & RS232

Manufacturer: Dynalink
SKU: A3082
This compact 4-way HDMI switcher features manual & infra-red remote control for switching up to 4 sources to a single display supporting resolutions up to 4k 60Hz.
Save $72.73 $95.45 $168.18

All Prices Shown are (ex GST)
Bulk Pricing
ea
$95.45 $168.18
2+
$95.45 $153.64
4+
$95.45 $135.45
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This compact 4-way HDMI switcher features manual & infra-red remote control for switching up to 4 sources to a single display supporting resolutions up to 4k 60Hz. Ideal for home theatres, showrooms, boardrooms & lecture theatres. Includes power supply & remote control. Analog and digital audio signals can be split from the HDMI signal. Audio EDID is selectable to 2.0, 5.1 and 7.1 modes. ARC function allows the audio from the selected display to be sent to the outputs provided. Automatically switches to last used input on power up.

Please note: D 2341 is sold separately if RS-232 control is required. See accessories panel below.


Features

  • RS-232 port for remote control.
  • Video formats up to 4Kx2K@60Hz.
  • Compliant with HDMI 2.0a, DVI 1.0.
  • Digital and analog extracted audio output.
  • HDCP 2.2 and HDCP 1.4 compliant.
  • Support PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH.
  • Switches 4 HDMI sources to a single HDMI output.

Specifications

HDMI Compliance: 2.0a

  • HDCP Compliance: 2.2 / 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K 60Hz 4:4:4
  • Audio Output: PCM 2.1, 5.1, 7.1, Dolby 5.1, DTS 5.1,
  • Dolby True HD, DTS, HD
  • Audio Return Channel (ARC) support: Yes
  • Inputs: HDMI x 4
  • Outputs: HDMI x 1, 3.5mm jack (analog &
  • digital optical - adaptor included)
  • Case Dimensions: 180W x 85D x 12H
  • Power Supply: 5V DC 1A (included)

Warranty & Returns

12 Months

We Offer 12 Months for this product
