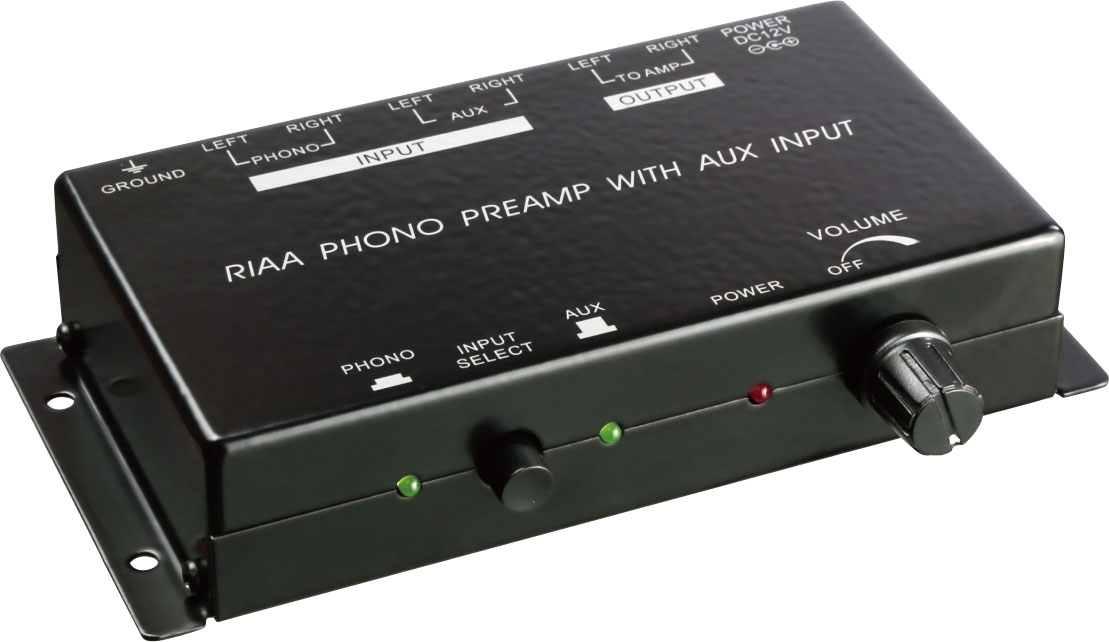

Phono Preamp with AUX input

SKU: A3052
This phono preamp can be used to raise your turntable's output to make it compatible with modern amplifiers. At the same time, it adds standardised equalisation. Users may need this phono preamp because their turntable either doesn't have one, in which case they won't be able to play records without one.
$77.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $77.27
2+ $69.55
4+ $61.82
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This phono preamp can be used to raise your turntable''s output to make it compatible with modern amplifiers. At the same time, it adds standardised equalisation. Users may need this phono preamp because their turntable either doesn''t have one, in which case they won''t be able to play records without one. Or maybe users just want to upgrade their turntables sound beyond what''s possible with the built-in preamp. This preamp supports AUX input and has an accurate and stable integrated circuit design. Size (LxWxH): 145 mm x96 mm x 31mm.


Features

  • For all turntables with moving magnet (MM) cartridges or audio devices with line level (e.g. tape decks)
  • External housing, reliably shielded against interference
  • Top quality circuit technology and components
  • Built-in low-noise phono preamp circuit conforms to the RIAA standard
  • Power supply included

Specifications

Input Impedance : 47K ohms

  • Output Impedance : 100 ohms
  • Phono Amplitude Gain : 40 dB (@1KHz)
  • AUX Amplitude Gain : 6 dB
  • Maximum Input : 50mVpp
  • Output Level : 5Vpp
  • Frequency Response : 20 Hz to 20K Hz
  • Signal to Noise Ratio : 70 dB
  • Power Source: 12 VDC
  • Size (LxWxH): 145 mm x96 mm x 31mm

Warranty & Returns

12 Months

We Offer 12 Months for this product
