4 Channel Headphone Distribution Amplifier

Manufacturer: Redback
SKU: A2630

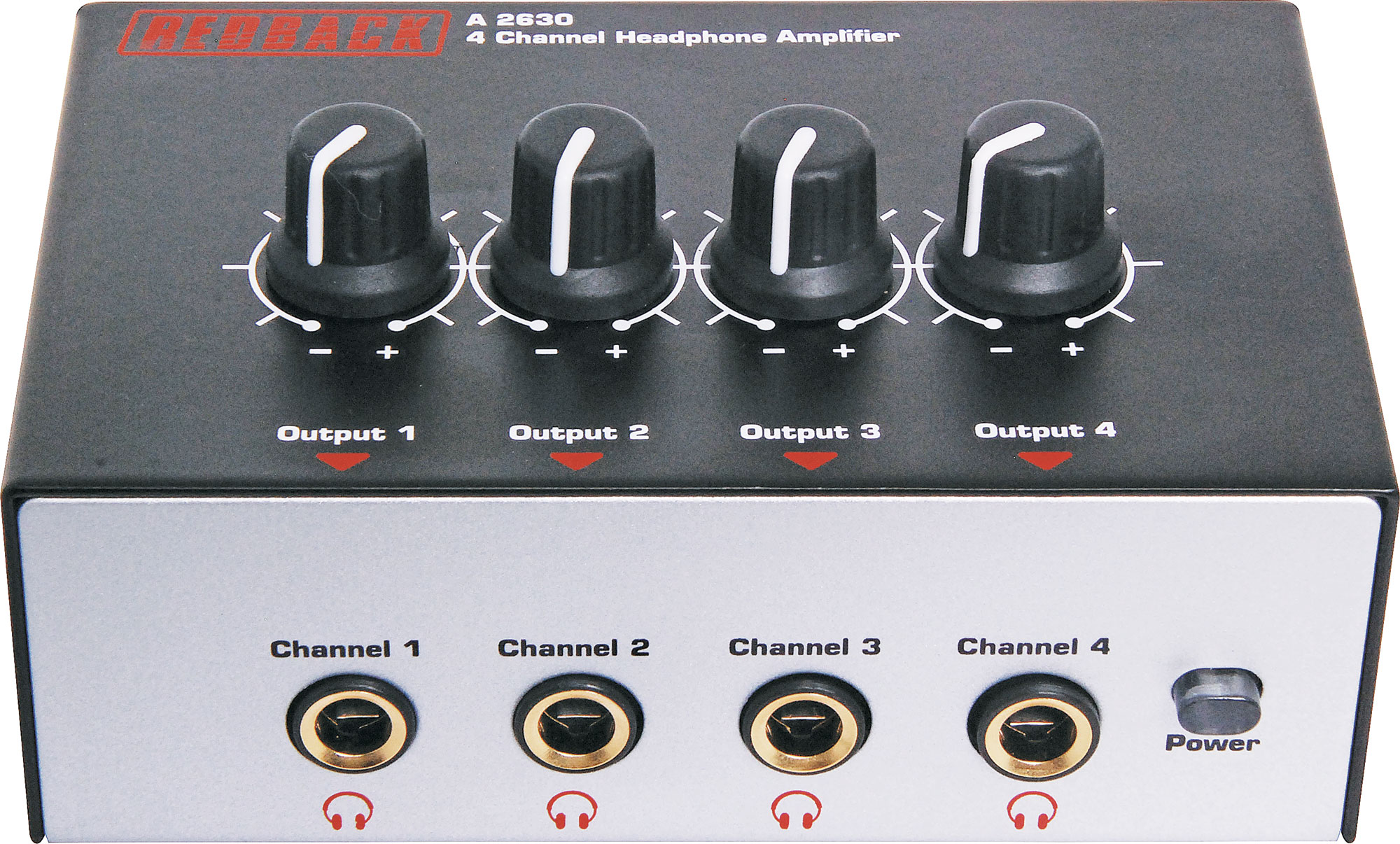

A compact headphone amplifier featuring four individual channels with volume controls. Ideally suited to monitoring in band and stage environments, it can also be used in educational situations such as language labs. Amplification and individual volume c
$90.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $90.00
2+ $80.91
4+ $71.82
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A compact headphone amplifier featuring four individual channels with volume controls. Ideally suited to monitoring in band and stage environments, it can also be used in educational situations such as language labs. Amplification and individual volume controls are provided for up to 4 headsets, driven by either line level or headphone amplifier signals (mono or stereo). Stereo RCA, 3.5mm and 6.35mm jack inputs provided. Powered by 12-18V dc (includes power supply).

Specifications

Input connection: 3.5mm TRS, 6.35mm TRS, stereo RCA

  • Input impedance: 22KΩ
  • Max input level: +22dB
  • Output connection: 6.35mm TRS
  • Output impedance: Min 16Ω
  • Max gain: 19dB/channel
  • Power: 12-18V dc
  • Dimensions: 113 x 73 x 40mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
