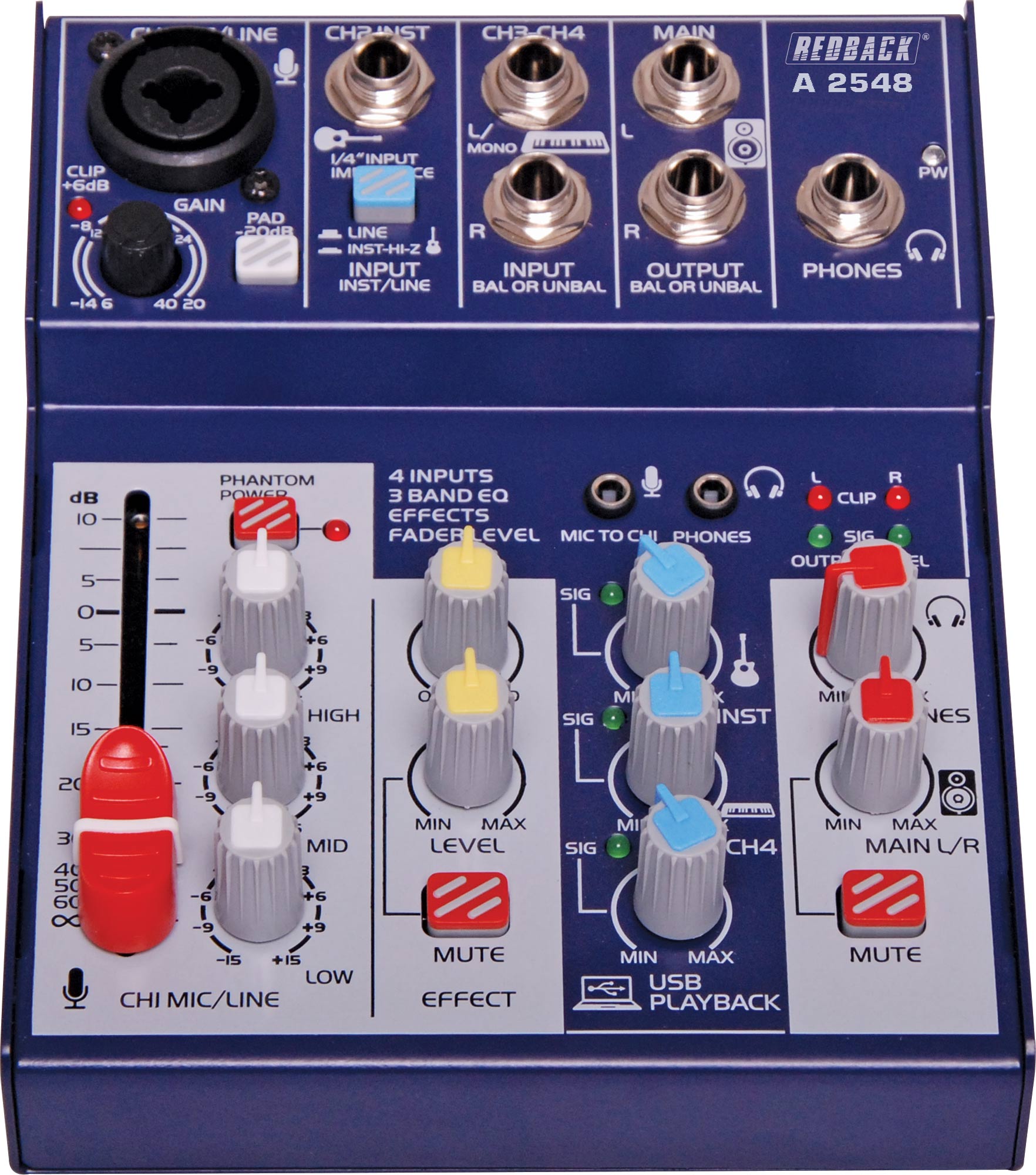

4 Channel Mixer With USB Output & Effects

Manufacturer: Redback
SKU: A2548
A perfect little mixer companion for your PC/laptop for home recording. Measuring only 124mm wide it takes up very little desk space whilst still offering features found on mixers twice the size - such as fader level control, three band EQ and effects.
Save $36.36 $90.00 $126.36

All Prices Shown are (ex GST)
Bulk Pricing
ea
$90.00 $126.36
2+
$90.00 $113.64
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A perfect little mixer companion for your PC/laptop for home recording. Measuring only 124mm wide it takes up very little desk space whilst still offering features found on mixers twice the size - such as fader level control, three band EQ and effects. The low noise mic preamp offers excellent performance for small home studios or use in the field. Powered by USB (5V DC @ 0.5A min).Type ''B'' connection

Please Note: This mixer includes a USB cable for external USB 500mAh power source. You can also use M 8861 if required.

Features:

  • Ultra compact design with USB PC interface
  • Windows & Mac OSX compatible
  • Powered via USB
  • High/low/mid 3 band EQ
  • Fader level control
  • 48V phantom power button
  • Mute buttons
  • 3.5mm headphone output and mic input
  • Channel -14dB to +40dB gain control
  • Signal input and clip indicators
  • -20dB pad switch

Specifications:

Inputs:

  • Ch 1: Mic/Line -14 to +14dB
  • Ch 2: Inst/Line (impedance switching)
  • Ch 3/4: Line

Equalisation:

  • Low: 80Hz ±15dB
  • Mid: 2.5kHz ±15dB
  • High: 12kHz ±15dB

Output: USB/3.5mm Headphones

  • Signal LED: -3dB
  • Sampling frequency: 48kHz 16-bit
  • Power: 5V DC @ 0.5A
  • Dimensions: 124W x 157D x 40Hmm
  • Weight: 600g
