180W Active Subwoofer Amplifier

Manufacturer: Opus One
Be the first to review this product
A compact high performance subwoofer amp equipped with volume, frequency control, phase switch, high & low level outputs. 120W RMS, stable into 4 ohms. Build your own tuned home cinema subwoofer! 235H x 175Wmm cutout.
SKU: A2451
$226.36
Per ea
QuantityPrice
ea$226.36
2+$204.55
4+$180.91

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

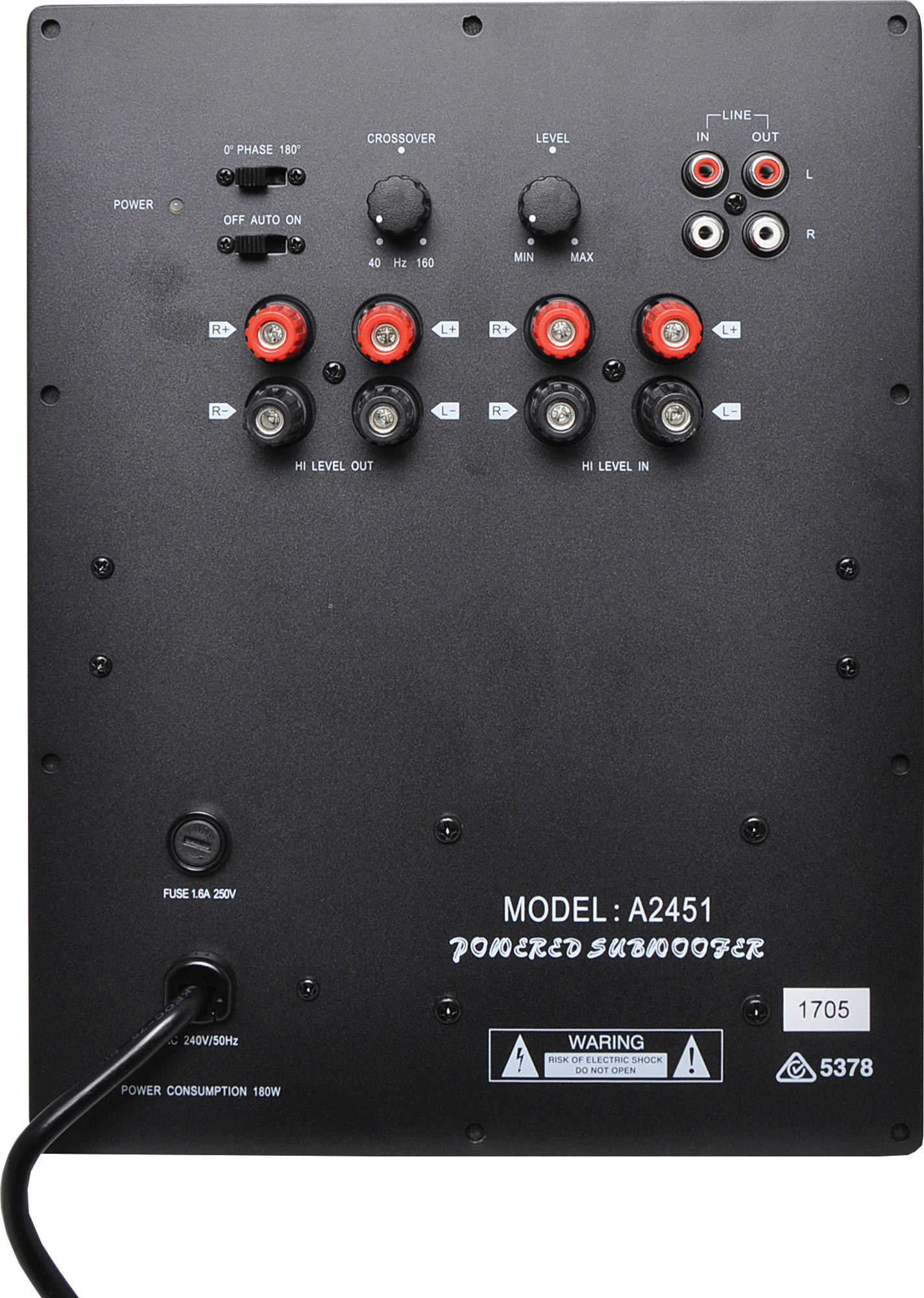

This completely self-contained amplifier module simply fits into the back of a sub-woofer cabinet. The unit will automatically spring into life from it''s Standby mode once a signal is received. The Volume and Crossover Frequency Controls together with the Phase Correction Switch allows the sub-woofer to be set for a desired sound. Installation can be completed in just minutes, simply make a 235mmH x 180mmW cutout into the back of the enclosure and slip in the module. Overall depth is 100mm.

Features

  • 180 max at 4 ohm (120W RMS).
  • Auto power on/off with signal presence
  • High and low level inputs
  • High level outputs
  • Volume control
  • Short circuit output protection
  • Active crossover variable from 20Hz - 200Hz
  • Phase reversal switch

Specifications:

Power Output: 180 Max @ 4O (0.5% THD). 120W RMS.

  • Frequency Response(Variable): 20Hz - 200Hz
  • Roll Off Rate: 6dB/Octave
  • S/N Ratio: >64dB
  • Auto Turn On Sensitivity: 21mV
  • Auto Power Off Time: 15-20 Minutes
  • Input Impedance: (Line) 47k Ω, (Speaker) 200 Ω
  • Size of facia plate: 210 x 270mm.

12 Months

We Offer 12 Months for this product
