Attenuator Volume Control 5 Zone Evac 100W / 100V Line

Manufacturer: Redback
Be the first to review this product
These controllers can be configured as either five single inputs to five outputs or one input to five outputs. Each zone has a capacity of 100W and total load capacity of 500W.
SKU: A2365
$454.55
Per ea
QuantityPrice
ea$454.55
2+$431.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

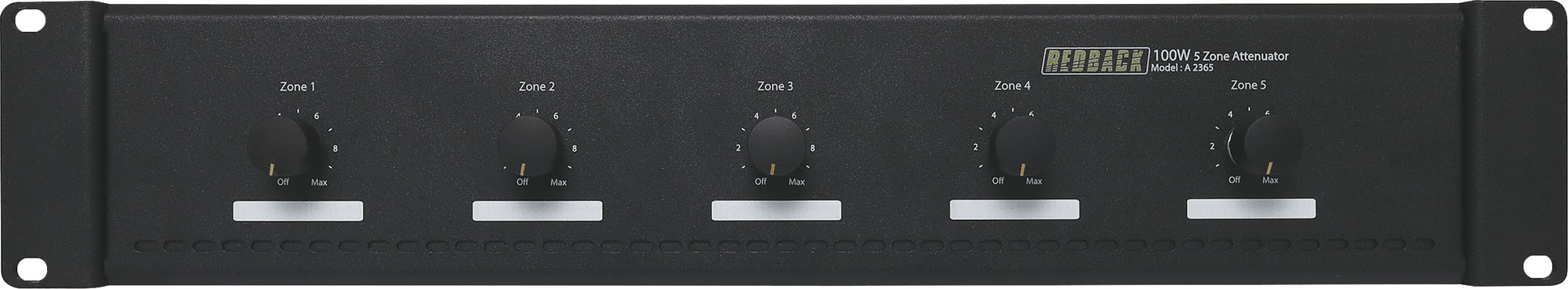

These controllers can be configured as either five single inputs to five outputs or one input to five outputs. Each zone has a 100W load capacity, with a total panel capacity of 500W. The 100W model has ten position plus off. The input and outputs are connected via heavy duty screw terminals on the rear panel. They are housed in a 2 unit rack panel and are supplied with an engraving strip to label the speaker zones. Suitable for 100V line commercial PA systems only.

Features

  • Standard 2 unit (88mm) 19" rack mount dimensions
  • Five Zone outputs
  • Accepts 1 to 5 inputs
  • Each zone has 10 positions plus off
  • 500W total load capacity (100W per zone)
  • Easy to terminate screw terminals
  • Unit is supplied with an engraving strip which can be fitted with double sided tape (supplied)
  • Includes 24V DC override relay for bypassing volume controller settings.

Specifications

Power rating: 500W Total (100W per zone)

  • Relay override voltage: 24VDC
  • Attenuation: 0, 3, 6, 9, 12, 15, 18, 21, 27, 33 dB
  • Dimensions: ≈ 484W x 50D x 88Hmm
  • Colour: Black
  • Weight: 4Kg




10 Years

We Offer 10 Years for this product
