Lockdown / Fire / Chime / Cancel Remote Wall Plate

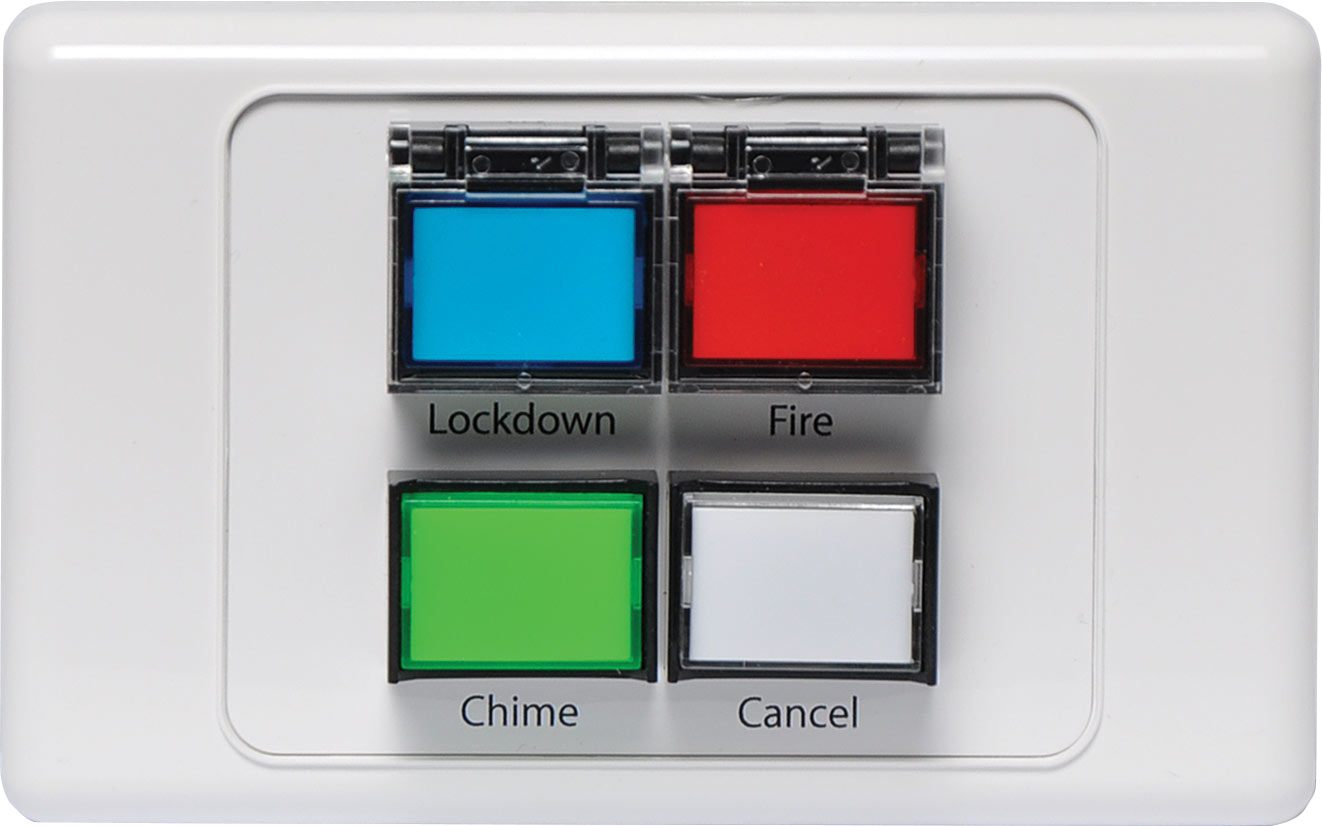

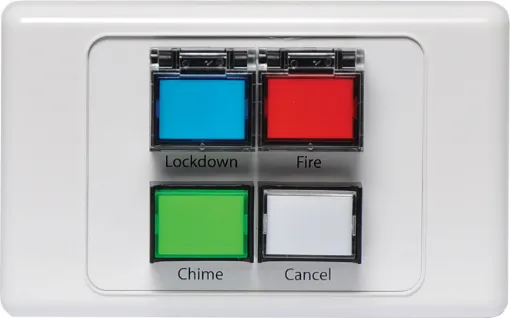

The Redback® A 2069 Remote Plate allows the Redback® A 4505 Lockdown Timer to be controlled remotely. Featuring Lockdown, Fire, Chime and Cancel buttons, the plate can be located up to 100m away from the main unit. Connection is made to the Redback® A 4505 via a minimum of 8 wires. If standard Cat5/6 cable is used for the wiring, the plate can be located up to 30m away from the main unit. Installations beyond 30m will require a heavier duty cable to prevent significant voltage drop and to ensure the switch LED’s illuminate. (Note: This plate uses screw terminal connections).

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.
