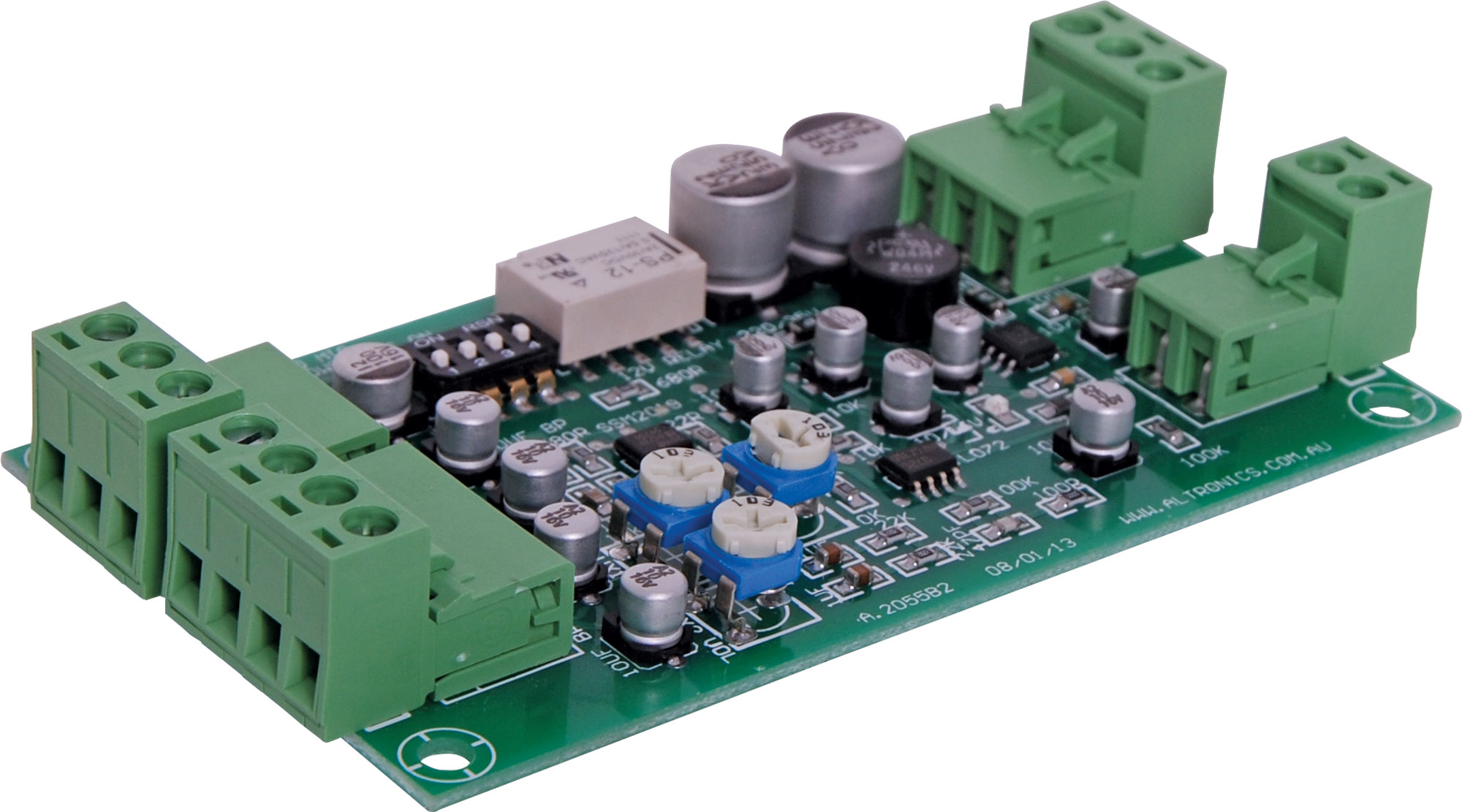

Balanced Mic / Line Input Pre-Amp & Mixer

Manufacturer: Redback
SKU: A2055A
Features two line inputs and one mic input, each with its own level control. The mic input can be configured for either balanced or unbalanced operation. All inputs are mixed to a single line level output. It can be powered from either a single rail po
$100.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $100.00
2+ $90.91
5+ $78.41
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Features two line inputs and one mic input, each with its own level control. The mic input can be configured for either balanced or unbalanced operation. All inputs are mixed to a single line level output. It can be powered from either a single rail power supply (15V to 30V dc), or a dual rail power supply (±12V to ±30V dc).
PCB dimensions 100 x 57 mm.

Specifications:

Microphone gain: 60 dB

  • Mic input sensitivity: 0.7 mV rms
  • S/N ratio: 10 mV input -74dB
  • Frequency resp.: 150Hz to 20kHz , -3dB
  • Line. gain: 14dB
  • Line. input sensitivity: 200mV
  • Line. S/N ratio: 500mV input -77dB
  • Line. freq. resp.: 30Hz to 20kHz, -3dB

Warranty & Returns

10 Years

We Offer 10 Years for this product

Specifications

Products specifications
Warranty Group
Warranty 10 Years
