PA Amplifier Module 250W

Manufacturer: Redback
Be the first to review this product
These modules are designed for use in emergency evacuation systems and are powered by an external 24V DC source. They accept a line level audio input and produce a 100V line output via a transformer. The modules feature short circuit, overload and therm
SKU: A1937
$627.27
Per ea
Quantity Price
ea $627.27
2+ $568.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

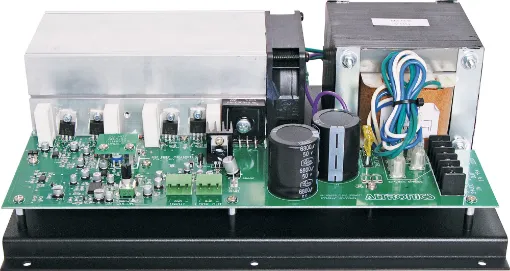

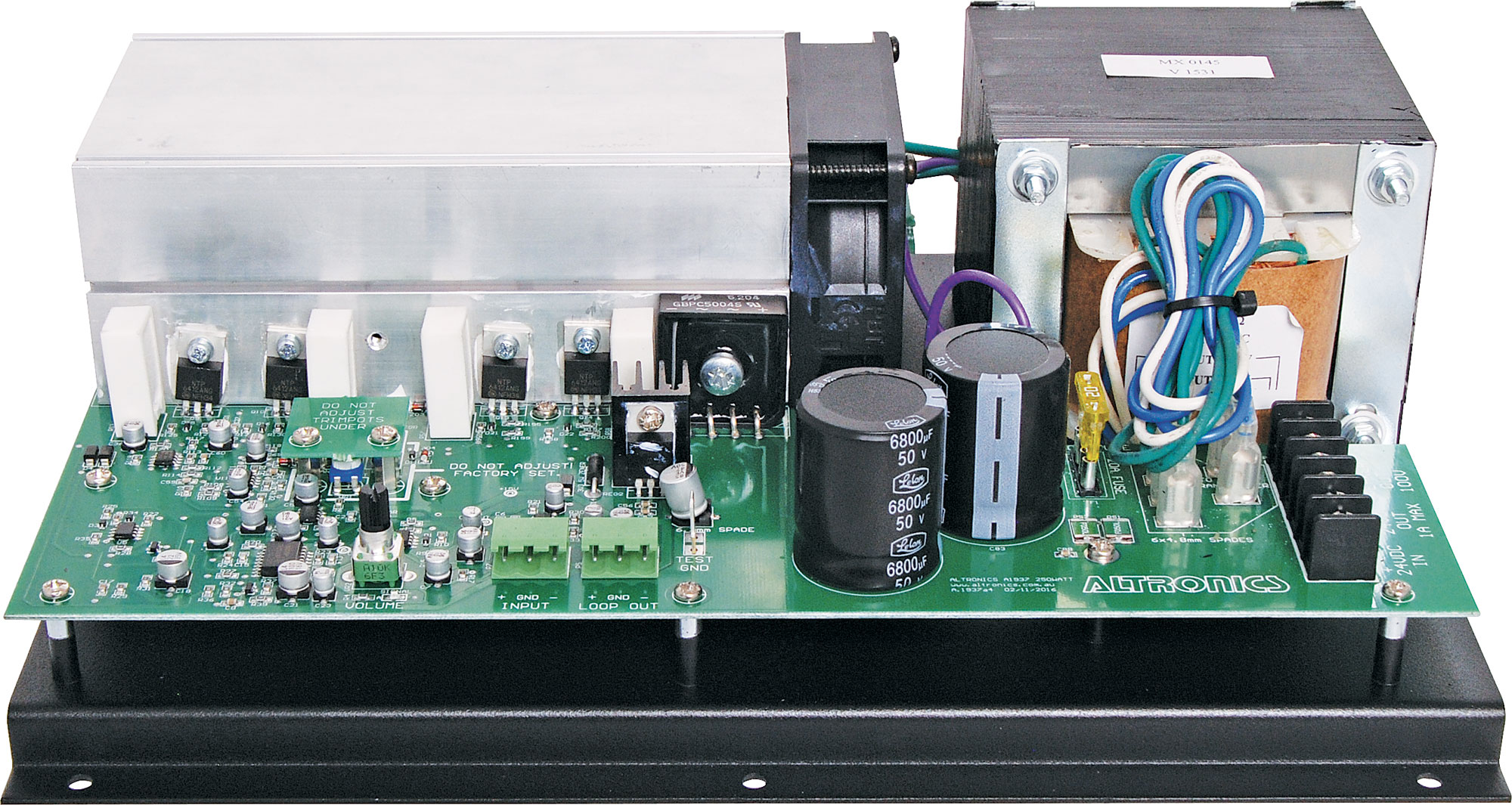

These modules are designed for use in emergency evacuation systems and are powered by an external 24V DC source. They accept a line level audio input and produce a 100V line output via a transformer. The modules feature short circuit, overload and thermal cutout protection, and are constructed on a steel chassis.

Features:

  • Powered by 24V DC
  • 100V line audio output
  • Line level audio input
  • Short circuit, overload and thermal cutout protection
  • Bolt-in chassis construction

Specifications:

Output Power: 250W RMS

  • Current Draw: 17A at full load (360mA quiescent)
  • Frequency Response: 40Hz - 13kHz
  • Distortion: <0.6%
  • SNR: -91dB
  • Sensitivity: 600mV RMS
  • Operating temperature: -10°C to +60°C
  • Dimensions: 300W x 240D x 95H

10 Years

We Offer 10 Years for this product
