PA Amplifier Module 120W

Manufacturer: Redback
Be the first to review this product
This module is designed for use in emergency evacuation systems and is powered by an external 24V DC source. It accepts a line level audio input and produces a 100V line output via a transformer.
SKU: A1932A
$495.45
Per ea
Quantity Price
ea $495.45
2+ $463.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

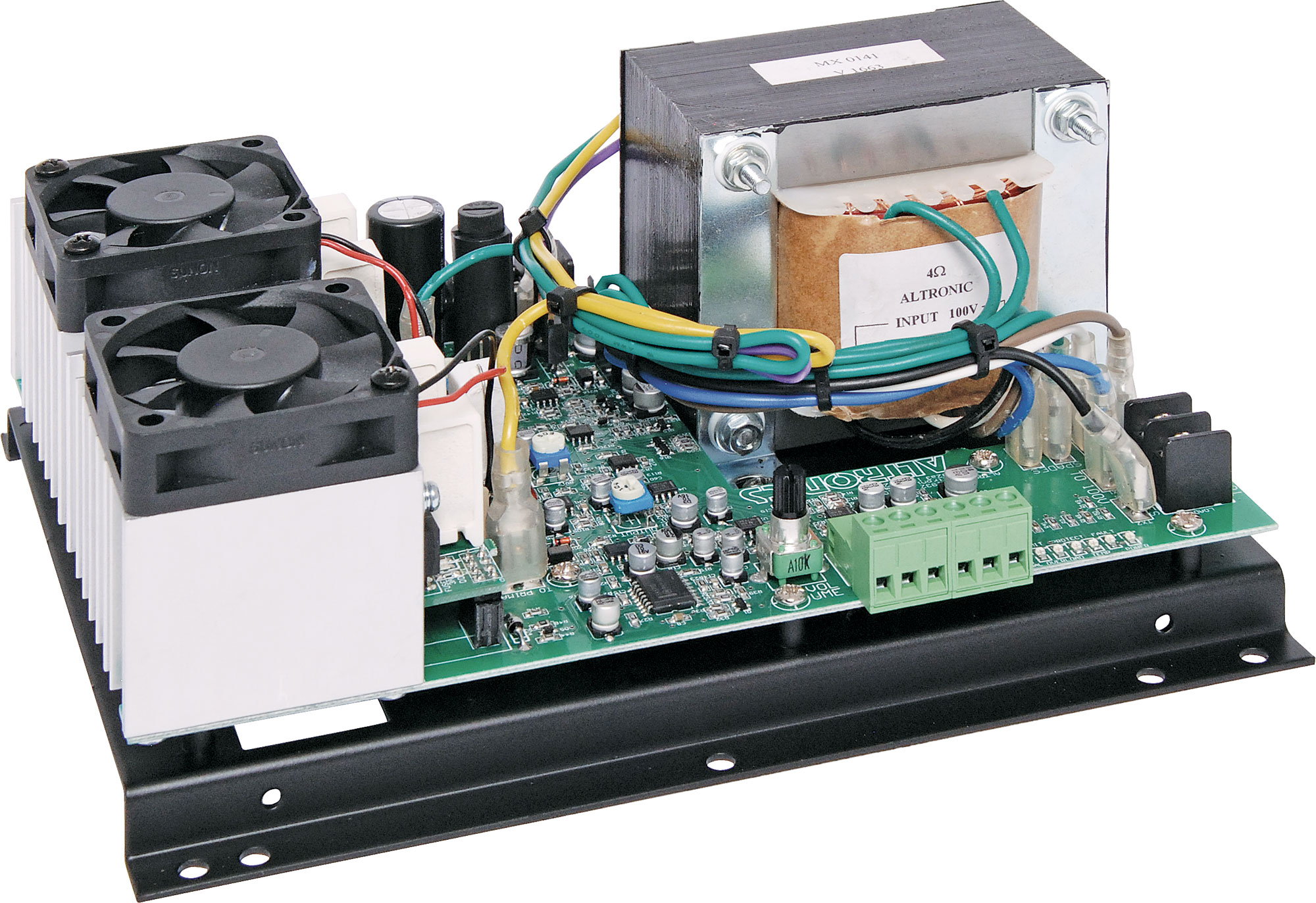

This module is designed for use in emergency evacuation systems and is powered by an external 24V DC source. It accepts a line level audio input and produces a 100V line output via a transformer. It also features short circuit, overload and thermal cutout protection, and is constructed on a steel chassis. Designed with reliability and robust performance in mind, it is the ideal audio power source for evacuation systems, or any application which requires a DC powered 100V line amplifier.

Features:

  • Powered by nominal 24V DC
  • 100V line audio output
  • Line level audio input - 600mV
  • Short circuit, overload, and thermal cutout protection
  • Bolt-in chassis construction
  • Australian designed and assembled

Specifications:

Output Power: 120W RMS

  • Current Draw: 8A at full load, 220mA Quiescent
  • Freq. Response: 50Hz - 12kHz
  • Distortion: < 0.6%
  • Signal to Noise Ratio: -91dB
  • Sensitivity: 600mV RMS
  • Fuse Rating and Type: 7.5A M205
  • Dimensions: 210W x 170D x 87Hmm

10 Years

We Offer 10 Years for this product
