PA Amplifier Module 60W

Manufacturer: Redback
Be the first to review this product

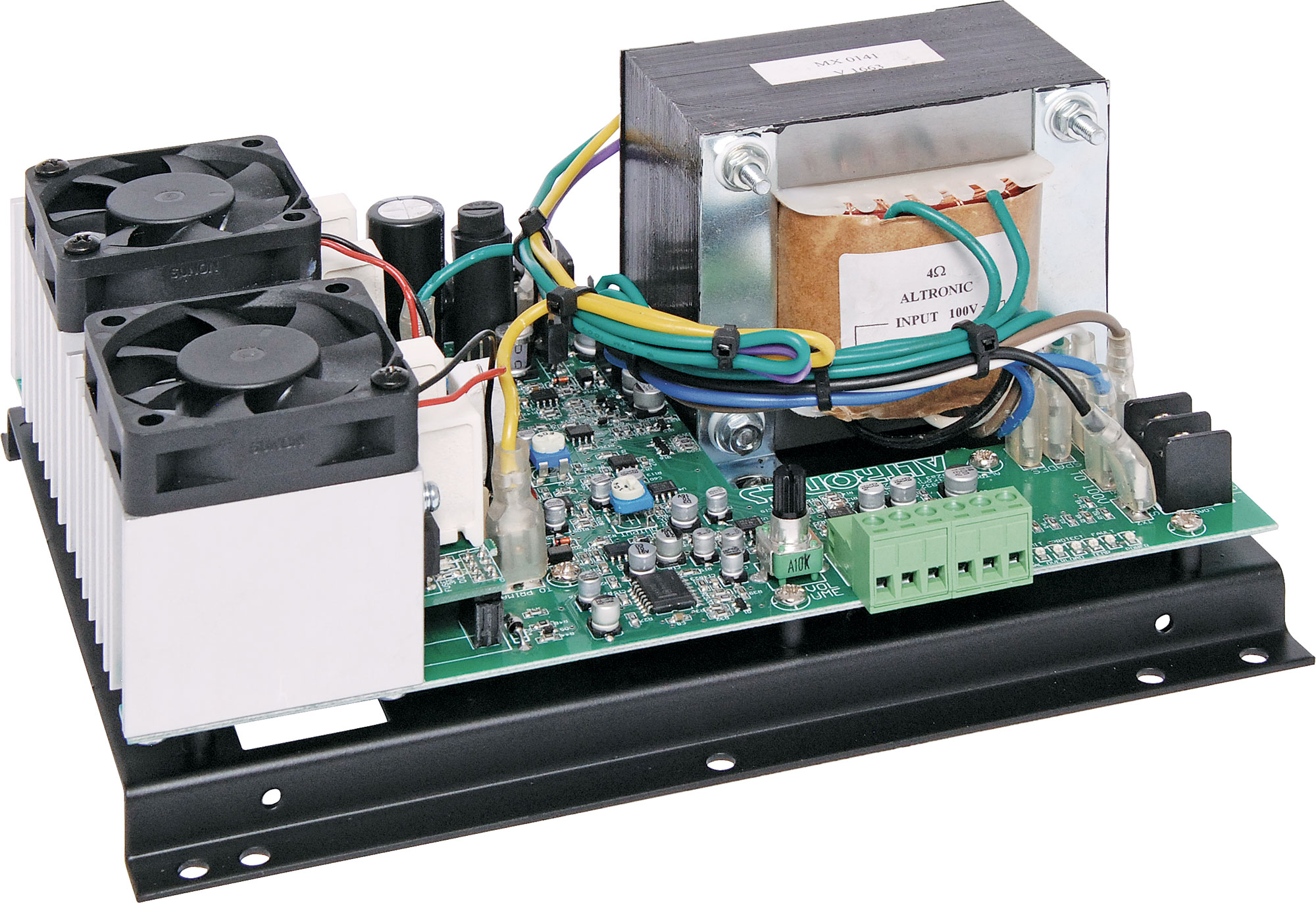

These modules are designed for use in emergency evacuation systems and are powered by an external 24V DC source. They accept a line level audio input and produce a 100V line output via a transformer. The modules feature short circuit, overload and thermal cutout protection, and are constructed on a steel chassis.
SKU: A1922
$326.36
Per ea
Quantity Price
ea $326.36
2+ $290.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

These modules are designed for use in emergency evacuation systems and are powered by an external 24V DC source. They accept a line level audio input and produce a 100V line output via a transformer. The modules feature short circuit, overload and thermal cutout protection, and are constructed on a steel chassis.

Features:

  • Powered by 24V DC
  • 100V line audio output
  • Line level audio input
  • Short circuit, overload and thermal cutout protection
  • Bolt-in chassis construction

Specifications:

Output Power: 60W RMS

  • Current Draw: 3.8A at full load (100mA quiescent)
  • Frequency Response: 45Hz - 12kHz
  • Distortion: <0.3%
  • SNR: -94dB
  • Sensitivity: 600mV RMS
  • Protection: 4A
  • Operating temperature: -10°C to +60°C
  • Dimensions: 210W x 170D x 85H

* Specifications subject to change without notice.
