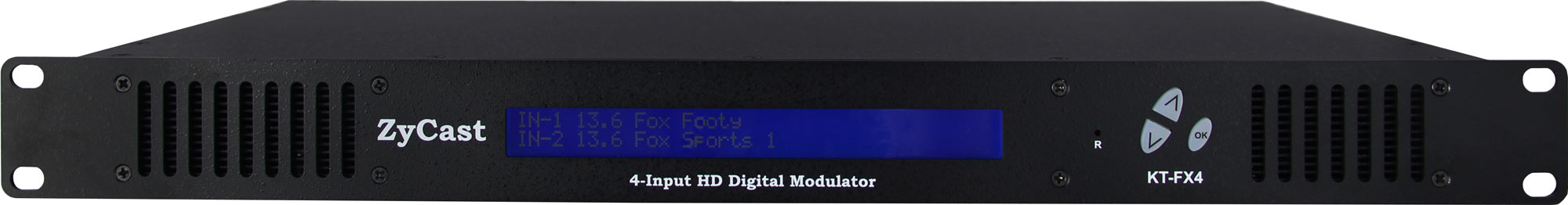

KT-FX4 HDMI RF 4 Channel DVB-T HD Quad Digital Modulator

Manufacturer: digi-MOD
SKU: A1164
Developed specifically for the commercial AV distribution market and the only Foxtel approved modulator on the market. Encodes four HDMI signals to any DTV channels, providing an easy way to distribute multiple high definition AV signals throughout buildings.
$5,018.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $5,018.18
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

The Digi-MOD KT-FX4 is developed specifically for the commercial AV distribution market and the only Foxtel approved modulator on the market. Encodes four HDMI signals to any DTV channels, providing an easy way to distribute multiple high definition AV signals throughout buildings. Pre-programmed with a Foxtel-approved channel listing and with an output level of 90dB and MER of >38dB, the KT-FX4 makes use of video compression via H.264 AVC (MPEG-4) and audio compression via MPEG Layer II/AAC to distribute a crystal-clear HD picture over new or existing coaxial cable. Can be programmed via front panel or easy to use web based user interface

Features

  • Converts HD video and audio signals to digital COFDM DVB-T channel
  • Foxtel approved
  • Optimised 24mbps stream ideal for live sports viewing
  • Pre-programmed Foxtel channel listing
  • 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  • Full function front LCD for adjustments
  • Web GUI interface for easy programming
  • 2K/8K carriers
  • Internal fan cooling system for long life span
  • 1RU rack mountable
  • Distributes on any new or existing RF cable
  • Built in IR control allows TV locations to have IR control of AV equipment

Specifications

Input

  • Number of inputs: 4
  • Video Input: HDMI
  • Video Input Level: 0.7 - 1.4V (Peak to Peak)
  • Video mode: PAL
  • Audio input: Stereo
  • Audio input level: 0.4 to 4.8V (Peak to Peak)

Output

  • Frequency Range: 177.5 MHz to 816.5 MHz (6 to 69)
  • HDMI loop through: No
  • Output level: 85dB
  • MER: >38dB

Delayed Audio

  • Delayed audio output: No

Modulation

  • Video Resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  • Video compression: H.264 AVC (MPEG-4)
  • Audio compression: MPEG Layer II / AAC
  • Video bitrate SD: 1Mbps to 9Mbps (Default 5Mbps)
  • Video bitrate HD: 12Mbps to 24Mbps (Default 24Mbps)
  • LCN: AU (APN)
  • Carrier: 2K/8K
  • GI: 1/32
  • FEC: 7/8
  • Constellations: 16 QAM/64 QAM

Management / Programming

  • Front LCD: Yes
  • Web GUI: Yes

General

  • Power supply type: External
  • Power supply: 12VDC 1.5AMP
  • Redundant PSU: No
  • Operating temperature: 0°C to +45°C
  • Storage temperature: 0°C to +60°C
  • Dimensions: 482mm x 208mm x 44mm
  • Weight: 2.5kg
