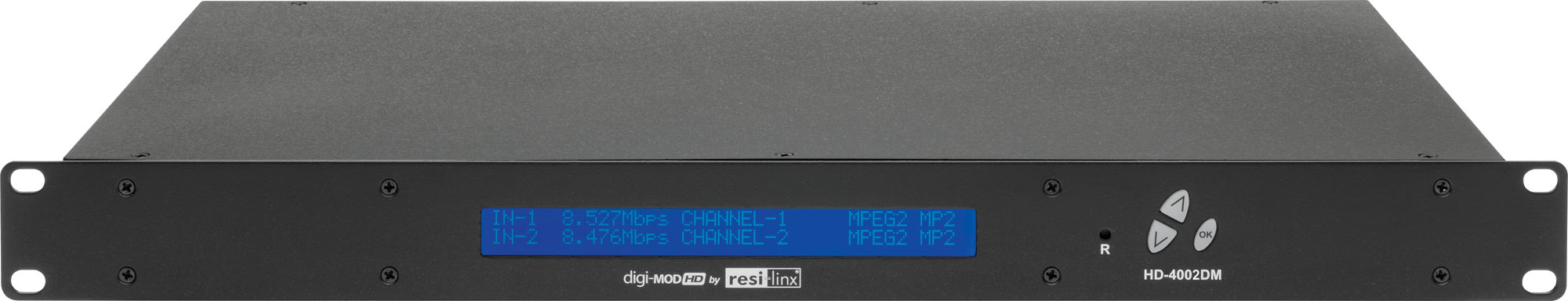

HD-4002DM Quad Input HDMI DVB-T HD Digital Modulator

Manufacturer: digi-MOD
Be the first to review this product
Quad input high definition DVB-T modulator that converts HD video and audio signals to digital COFDM DVB-T channel. HD-4002DM
SKU: A1130
$6,768.18
Per ea
QuantityPrice
ea$6,768.18
2+$6,268.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This new high definition, HDMI equipped, modulator system will allow you to distribute any HD devices (Foxtel, Austar, DVD etc) in true HD around the home or business with ease. Transmit sources to secondary locations over a single 75Ω coaxial cable. Each AV input can be assigned its own dedicated TV channel. It allows the connected sources to be viewed at multiple locations simultaneously, depending on the splitters used. Selecting the desired source is as simple as changing channels on your TV. Ideal for retro-fitting/upgrading older analogue modulator installations. Includes power supply.

All Digi-MOD HD and IP products support HDCP.

Features

  • Quad Input High Definition DVB-T Modulator that converts HD video and audio signals to digital COFDM DVB-T Channel
  • Dual Mode - MPEG-2 & AVC (MPEG-4) Encoding
  • Distributes 576i / 720P / 1080i / 1080P picture quality (1080P only available on AVC)
  • HDMI, Component, CVBS & Analogue Audio Inputs
  • Programmable; Channel, Network Names and LCN
  • Full function front LCD display for adjustments
  • Remote Access and control GUI via Web browser
  • Emergency Announcement System control (EAS) input
  • Internal FAN Cooling System for Long Life Span
  • 2K/8K Carriers
  • Adjustable VHF / UHF Output (6-69)
  • 20 dB Adjustable Attenuation (98dB launch)
  • 1RU Rack Mountable
  • Distributes on any new or existing RF cable
  • Most Affordable Price Point for HD distribution
  • Installed within minutes – plug n play technology

Specifications

Video Inputs (Video by Priority)

  • HDMI: 1.4V
  • Component: YprPb (RCA)
  • Composite: CVBS (RCA)

Audio Inputs

  • Audio Inputs: L/R (RCA)

Video Encoder

  • Mode: MPEG-2, MPEG-4(AVC)
  • Video Resolutions: 1080p (AVC Only), 1080i, 720p, 576p, 576i, 480p, 480i

Audio Encoder

  • Audio Compression: MPEG-1 Layer II, AAC, AC-3 (Optional), AC-3 Pass Through

RF DVB-T Support

  • Frequency: Channel Plan - Varies by Country
  • RF Channel Output: 4 multiplexed on to 2 RF Output
  • Constellation: 64QAM (16QAM)
  • Bandwidth: 7 MHz
  • RF Level Output: 100dB
  • MER: >40dB Typical
  • FEC: 1/2, 2/3, 3/4, 5/6, 7/8
  • Guard Interval: 1/4, 1/8, 1/16, 1/32
  • OFDM: 8K (2K)
  • Attenuation: 1-20dB (1dB steps)
  • RF Output: "F" - Female 75 ohm
  • Closed Captioning Control: By Selection (use of CVBS Input)

EAS Support

  • Connection: Terminal Type
  • Video Input: CVBS (RCA)
  • Audio Input: L/R (RCA)

ASI Support

  • Connection: 75Ω (BNC)
  • Output: TS Multiplexed
  • IP Output: - not available
  • Management / Control:
  • Front Panel LCD Control: Full Support (Up/Down/OK Buttons)
  • GUI: IE9, Firefox, Chrome, Safari
  • Password Protected: Front Panel, GUI

General

  • Rack Mountable (1RU): 482.7mm x 240mm x 44.4mm - 19" EIA Standard
  • Internal Fan Cooled: Dual Internal
  • LCD Front Panel: Dual Line, Scrolling Display
