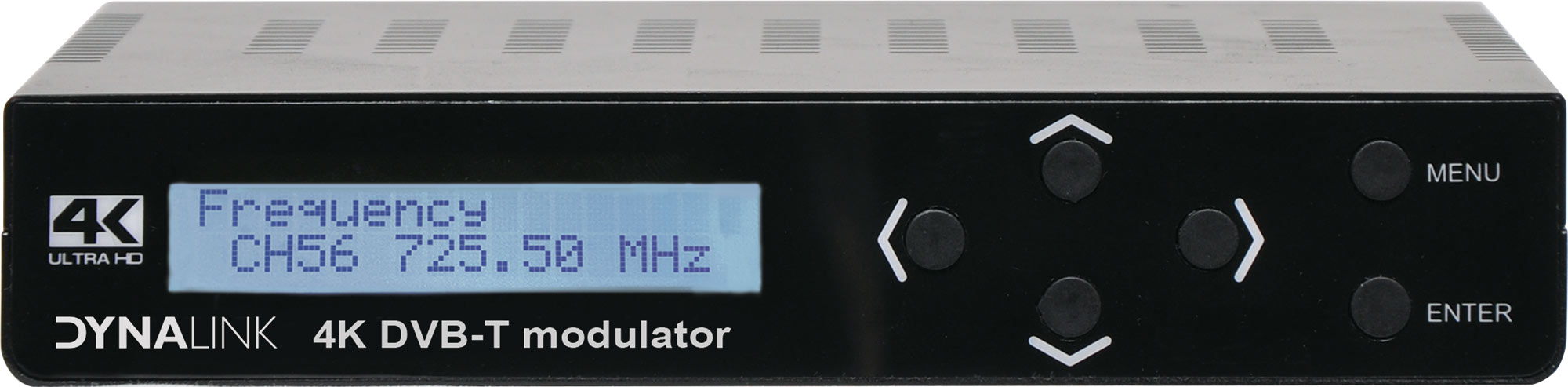

HDMI RF Digital DVB-T Modulator with 4K Loop Output

Specifications

Connections

• HDMI IN: Max 4K Resolution
• HDMI OUT: 4K Pass Through
• RF Output: 1 DVBT RF output with type F female, 75 ohm (Max 1080P resolution)
• RF Input: RF Combiner
• Modulation: Standard: DVBT (ETSI EN 300 744) Constellation: QPSK, 16QAM, 64QAM Guard Interval: 1/4, 1/8, 1/16, 1/32
• FFT Carriers Mode: 2K, 8K
• Bandwidth: 6MHz, 7MHz, 8MHz, 7-8MHz
• Power Supply: 12V Adapter
• Display: LCD panel @ 2 x 16 characters (on front panel).
• Configuration: 6 Local keys on front panel
• Environmental for operating: Temperature range: 5°C- 40°C Relative Humidity: 80% @ 30°C

Source Input

• Input Channel: 101
• Video: HDMI
• Video System: 480i/p, 576i/p, 720p, 1080i/p, 4K(3840x2160 or 4096x2160)
• Audio System: HDMI

Compression

• Video: H.264 Baseline Profile Level 4.0
• Video Resolution: 1080p 25 / 30 Max
• Video Bit rate: 12Mbps MAX
• Audio: MPEG-2 / AAC
• Audio Bit rate: 192 Kbit/S
• DVB insertion tables: SDT, NIT
• Editable Field: Service Name , Network Name , Provider Name , TS ID , Network ID , Original NET ID, LCN , NIT Version , Private Data ,Country

RF Output

• Type: 1 Multiplex DVBT with a digital TV service
• Frequency: 177 – 858 MHz
• MER: 30 dB Min.
• Output level: 100 dBuV
• RF Level Adj: 0 dB ~ -30dB
• Attenuation step: 1dB per step
