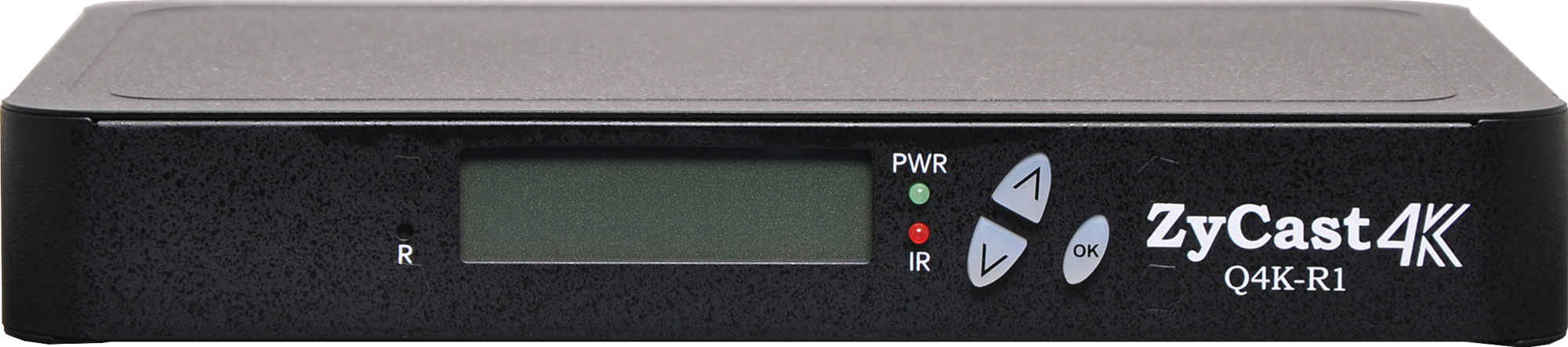

HDMI RF Digital DVB-T Loop Through 4K Modulator

Manufacturer: digi-MOD
Be the first to review this product
These 1 channel high definition, HDMI equipped, modulation systems will allow you to distribute any HD devices (Foxtel, DVD etc) in true HD around the home or business with ease. Both models are fitted with a HDMI loop through for local playback.
SKU: A1125B
$635.45
Per ea
QuantityPrice
ea$635.45

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The replacement of the industry''s most popular modulator,HD-1603, accepts a 4K signal and will loop-through that same signal, however modulated signal is still limited to 1080P, due to the limitations with TV tuners.

Like the HD1603, the Q4K-R1 supports Resi-linx IR targets and emitters. Resi-linx are the market leader in both IR and modulation and the only brand to have Foxtel approved product in both fields.

This unit has full menu via LCD display, improved MER resulting in higher quality picture and is configurable for New Zealand. Q4K-R1 allows you to distribute any HD source around your home/business installation over coax cable and control with ease.

Specifications

Video / Audio Input

  • HDMI 2.0
  • Connectors: Dual (One for Input ; One for Loop-through)
  • Audio: Embedded PCM
  • HDCP Compliance: 1.4 and 2.2
  • Resolution: 4k/UHD/1080p/1080i/720p

Output

  • QAM
  • Standard: DVB-T
  • Connector: 1x “F” Female
  • Frequency Range: 177.5MHz to 816.5MHz (Ch6-Ch69)
  • Output Level: 85 dBµV Typical, (With 20dB Range Manually Adjustable)
  • Flatness Across Full: ±2dB
  • Band MER: 39 dB Typical
  • Carrier (OFDM Mode): 2K/8K
  • Guard Intervals: 1/32
  • Code Rate (FEC): 7/8
  • Modulation: 64-QAM
  • Output Impedance: 75 ohm
  • RF Output Return Loss: 10 dB Typical
  • LCN: Embedded, Varies by Country Regulations

Video/ Audio Encoding Profile

  • Video
  • Resolution: 1080p / 1080i / 720p
  • Video Codecs: H.264
  • Audio
  • Audio Codecs: MPEG1 Layer II, MPEG4 AAC

General

  • Local Monitoring: LCD
  • IR Emitter: Single
  • Web GUI Supported: Firefox, Chrome, Safari
  • Password Protected: GUI:User Settable
  • Power Supply: 12VDC 1.5A
  • Consumption: 6.5 Watts
  • Operation Temperature: 0°C to +45°C
  • Storage Temperature: 20°C to +70°C
  • Dimension: 236mm x 145mm x 34mm
  • Language: English

Features

  • Most cost effective fully featured 4K HD modulator on the market
  • Single input digital modulator encoding HD video and stereo audio signals to MPEG-4 only(H.264) DVB-T COFDM TV channels
  • Compatible input resolutions 576i/720P/1080i& 1080P/UHD/4K for high definition picture quality (ensure TV tuner is MPEG4/H.264 and 4K HDCP2.2 compatible)
  • HDMI input-with HDMI loop through for local connectivity
  • IR return path- compatible with resi-linx RL-RF380(video hub) and Rl-RF210(IR target)
  • Superior error rate (MER 39)
  • Full function front LCD display with menu driven configuration
  • New Zealand channel plan selectable
  • 2K/8K carriers
  • Adjustment of settings available via WEB GUI
  • Remote management with a PC
  • Adjustable VHF/UHF output (6-69)
  • 85dB launch with adjustable attenuation
  • Compact design
  • Silent operation - NO FAN NOISE!

12 Months

We Offer 12 Months for this product
