RL-RF210 Flat Screen IR Target

Manufacturer: Resi-Linx
Be the first to review this product

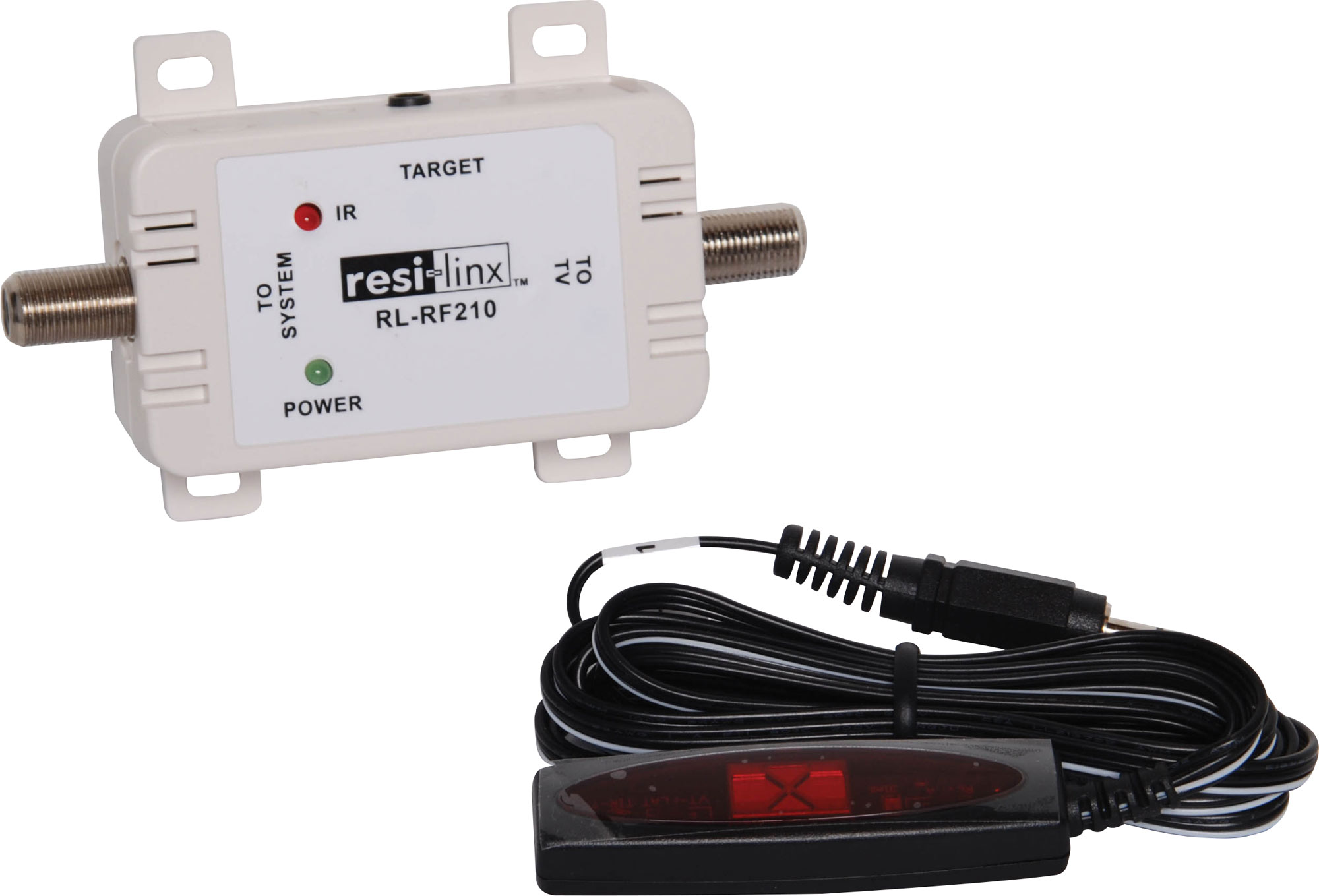

The resi-linx™ RL-RF210 is a sleek and unobtrusive "Plasma Friendly" Flat IR Target for use in the resi-linx™ range of RF IR Video Distribution system. The target receives IR commands from remote controls and sends the signal through the Video Hub and Emitters to control the AV device at a remote location.
SKU: A1056
$135.45
Per ea
QuantityPrice
ea$135.45
4+$127.27

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The resi-linx™ RL-RF210 is a sleek and unobtrusive "Plasma Friendly" Flat IR Target for use in the resi-linx™ range of RF IR Video Distribution system. The target receives IR commands from remote controls andsends the signal through the Video Hub and Emitters to control the AV device at a remote location.

Features:

  • Sleek unobtrusive Flat IR Target for use with Vcomm’s RF IR Video Distribution System with IR modulator / video hub emitters.
  • Flexible flat cord allows for ease of placement of target.
  • Target plugs into compact in-line coaxial connector box using 3.5mm mini-jack
  • Light-weight Connector box has mounting brackets for ease of installation
  • To facilitate placement, adhesive backing is also included for both target and connector box.
  • Receives IR commands from remote controls and send the signals through the Video Hub and emitters to control the AV device at a remote location
  • Built-in LED to show acknowledgement of IR commands
  • Rejects interference from displays that enters the IR signal line
  • Rejects interference from direct sunlight and fluorescent tube lights for accurate IR signal reception
  • Powered remotely by modulator (both connector box & target)

Specifications:

Max Target reception distance: Up to 6m

  • Operating voltage: 5V
  • Cable requirement: Coaxial
  • Connector type: F
  • IR frequency: 30 – 100kHz
  • RF frequency: 50MHz~900MHz
  • Size (mm) connector box: 70 x 40 x 23
  • Size (mm) flat target: 57 x 13 x 8

12 Months

We Offer 12 Months for this product
