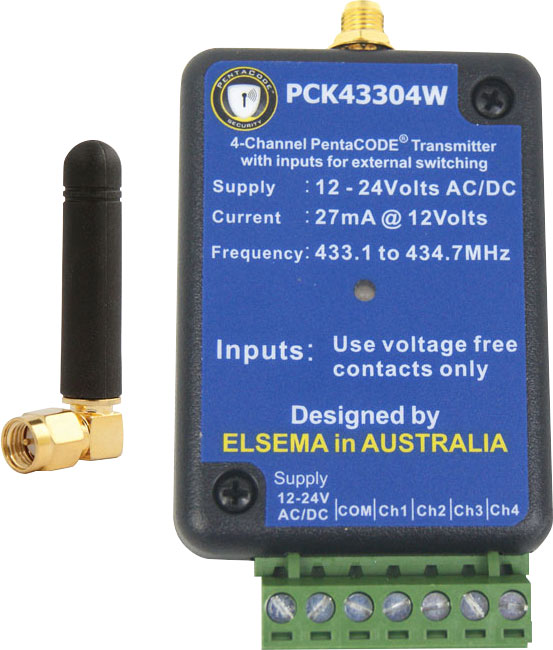

PCK43304W 433MHz Transmitter with 4 External Inputs

This easy-to-install transmitter combines 4 inputs, long range, frequency hopping and different transmission modes into a single small device. This transmitter is a fixed high-power transmitter compatible with the Penta (PCR series) receivers.

With the frequency hopping, the transmitter allows multiple systems to be used in one area with no interference. The transmitter modes are user selectable and adjustable timing is set with an on board trimpot. LED indicates an input is activated.

Installation is easy with pluggable terminal blocks for the supply and inputs. The transmitter comes with a micro antenna for short range applications. Using the ANT433M antenna can give an operating range of up to 500 metres.

Applications
Wireless Push Button, Industrial Controls, Duress button, Security, PLC controlled transmitter or to reduce the need to run control wires over a long distance.
