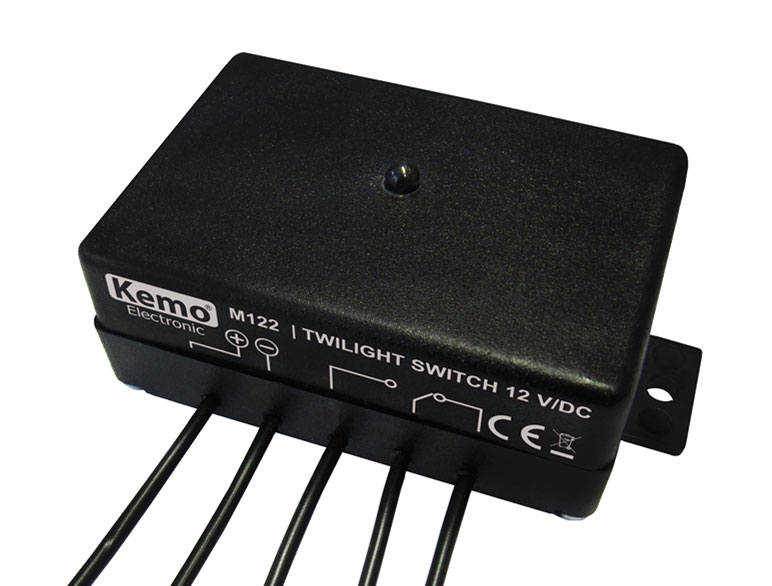

12V Twilight Switch M122

Manufacturer: Kemo
Be the first to review this product
Kemo M122 switch allows users to switch lamps or other electric devices on or off at dusk or daybreak. The sensitivity of the luminous intensity may be changed by partially covering the sensor mechanically.
SKU: A0724
$36.32
Per ea
QuantityPrice
ea$36.32
2+$32.27
4+$29.05

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Kemo M122 switch allows users to switch lamps or other electric devices on or off at dusk or daybreak. The sensitivity of the luminous intensity may be changed by partially covering the sensor mechanically.

Specifications

Operating voltage: 12 V/DC (11 - 14 V)

  • Power consumption: approx. 2 mA/35 mA (relay off/on)
  • Relay contact: 1 x SWITCH OVER, loading capacity max. 25 V, 3 A
  • Operating temperature range: approx. -15 to +50°C
  • Luminous intensity switching-on: approx. 25 lux ±20%
  • Luminous intensity switching-off: approx. 45 lux ±20%
  • Switching delay: approx. 3 - 4 seconds
  • Dimensions: approx. 72 x 50 x 32mm (without fastening straps, with sensor)
