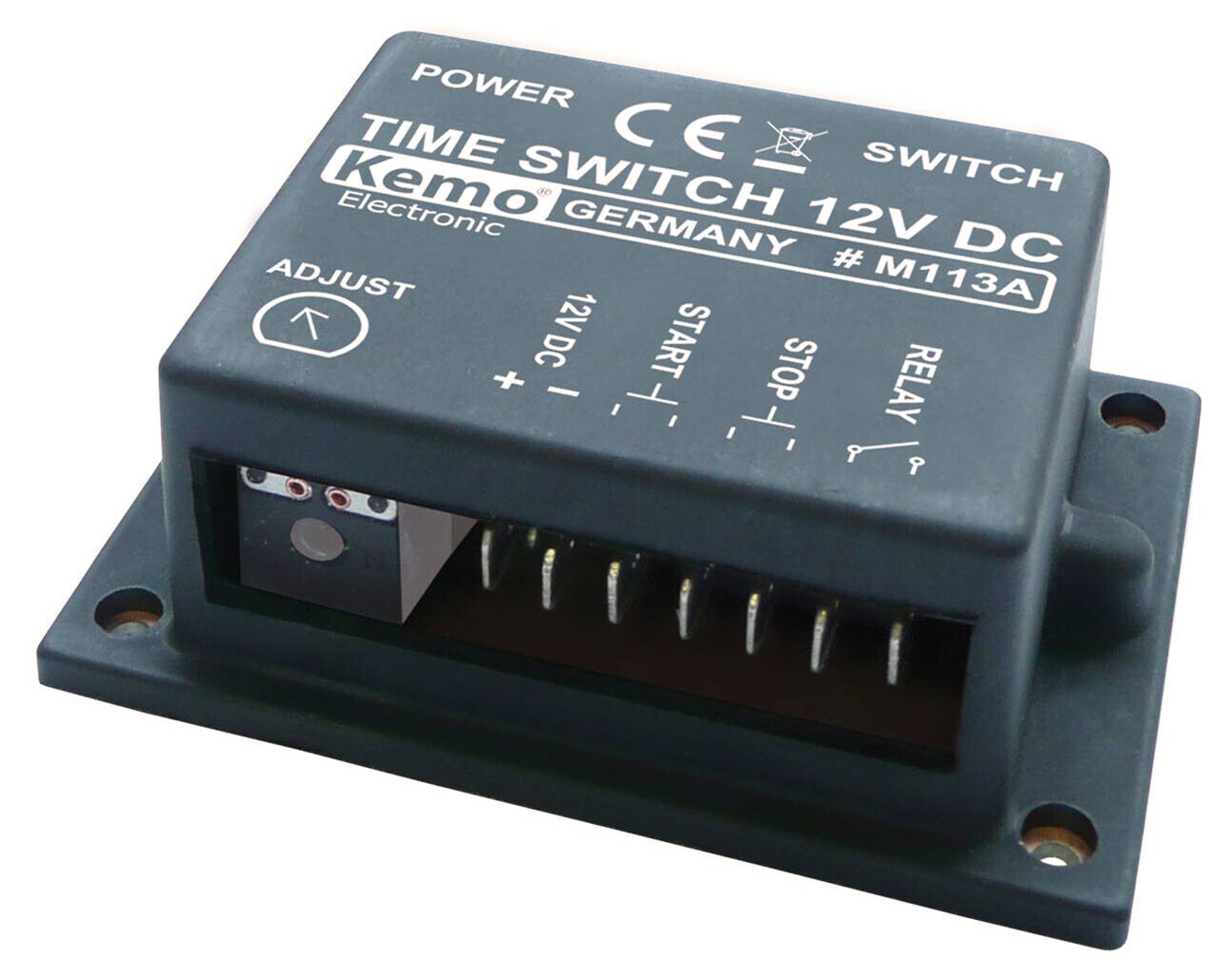

12V 3A Time Switch Module M113A

Manufacturer: Kemo
Avoid the hassle with this pre-assembled timing controller, conveniently packaged in a compact and reliable form. It's easy to connect and versatile enough to adapt to your requirements. The start and stop functions are managed by simple switching contacts, and the relay output can control devices up to 25VDC at 3A.
SKU: A0713
$42.68
Per ea
QuantityPrice
ea$42.68
4+$39.05
10+$35.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Avoid the hassle with this pre-assembled timing controller, conveniently packaged in a compact and reliable form. It''s easy to connect and versatile enough to adapt to your requirements. The start and stop functions are managed by simple switching contacts, and the relay output can control devices up to 25VDC at 3A. You can effortlessly adjust timing intervals from 2 seconds to 23 minutes using a screwdriver.Β

Specifications

Operating voltage: 12 - 15 V/DC

  • Current consumption: approx. 20 mA / 80 mA (relay off / on)
  • Adjustable time: approx. 2 sec. to 23 min., (Β± 30 %)
  • Connection: via flat-pin plug at the module
  • LED: 2 (1 x LED operating voltage, 1 x LED relay β€œON”)
  • Relay point: 1 x ON, max. 3A, max 25V
  • Dimensions: approx. 87 x 60 x 33 mm (with flanges)

12 Months

We Offer 12 Months for this product
