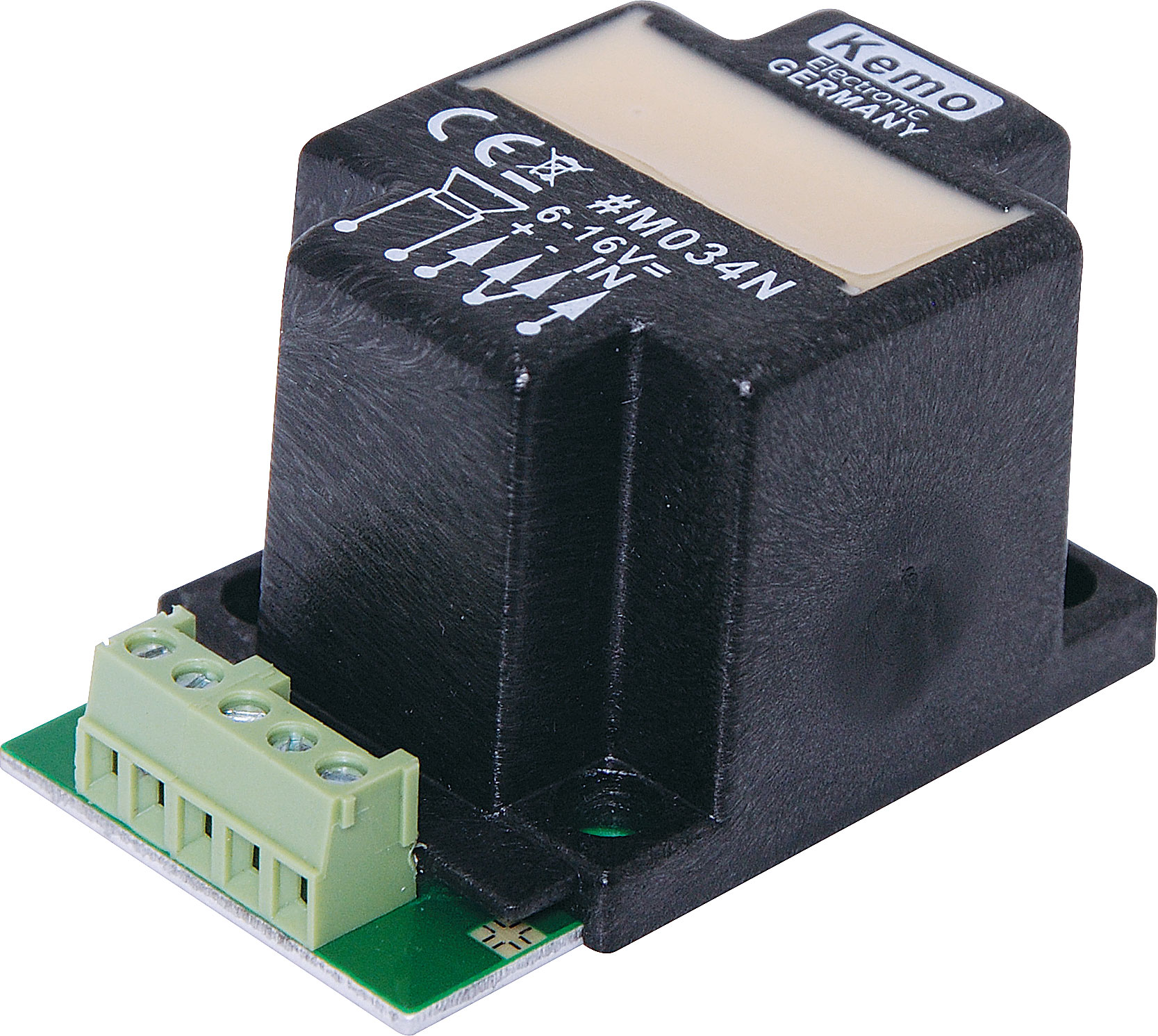

40W Mono Amplifier Module

Manufacturer: Kemo
Be the first to review this product
These German designed pre-built amplifier modules are a quick cost effective solution for custom audio projects. All you need to do is connect a power supply, speaker and an input. Each module is encapsulated in epoxy resin, offering excellent durabili
SKU: A0705
$53.64
Per ea
Quantity Price
ea $53.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

These German designed pre-built amplifier modules are a quick cost effective solution for custom audio projects. All you need to do is connect a power supply, speaker and an input. Each module is encapsulated in epoxy resin, offering excellent durability and reliability.

Heatsink "minimal dimensions of approx. 10 x 4 x 2 cm or even greater" eg, use H0520 or H0560

Specifications:

Power: 40W Max

  • DC volts: 6 - 16V
  • Impedance: 4 - 8 ohms
  • Frequency response: 20Hz - 20KHz
  • Input sensitivity: <500mV
  • Connections: 60mm flying leads
  • Dimensions: 70W x 45D x 29Hmm
  • Must be bolted to a suitable heatsink.

12 Months

We Offer 12 Months for this product
