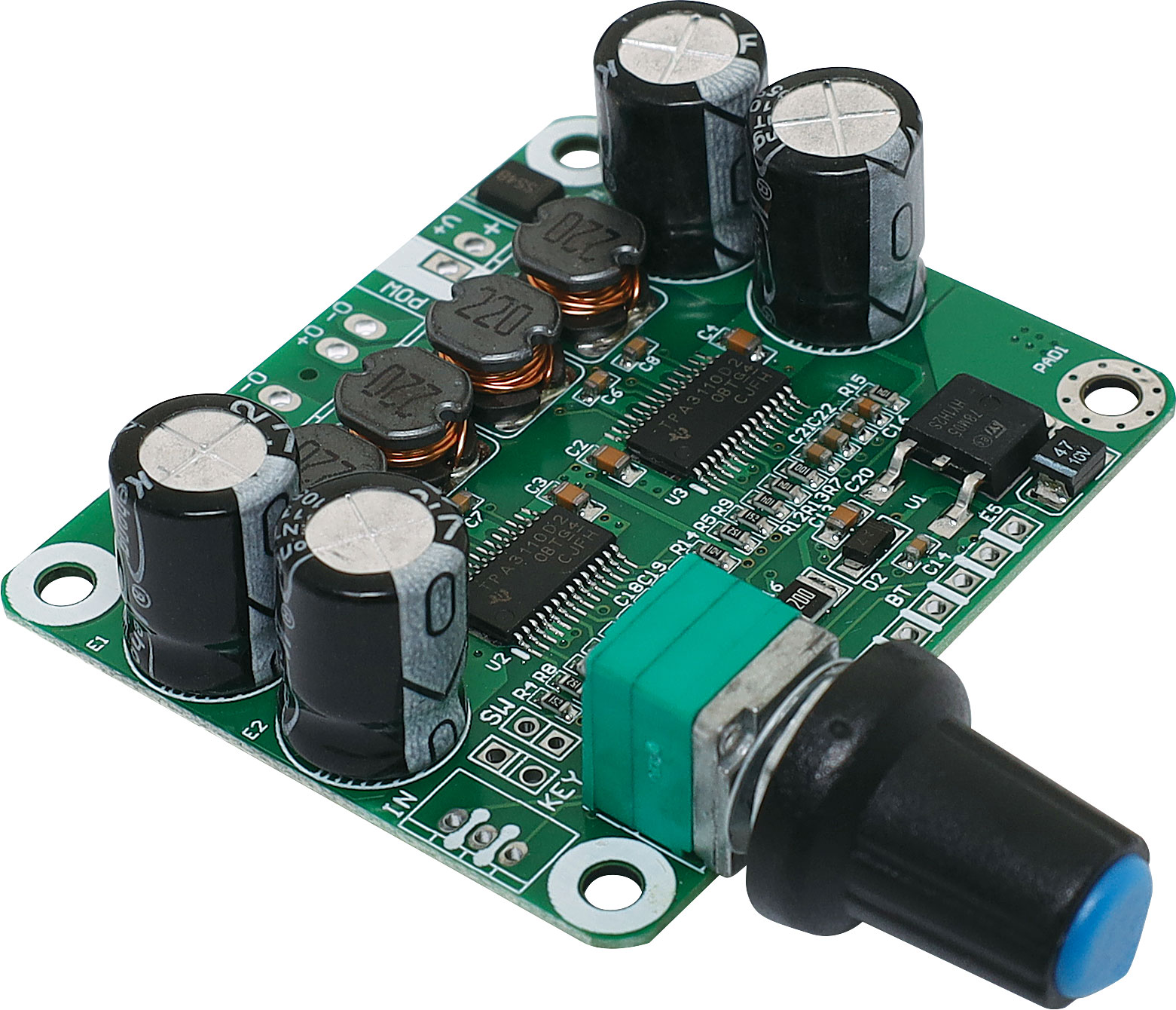

TPA3110 2 x 30W Digital Stereo Audio Amplifier Board

Be the first to review this product
The TPA3110 chip on board this amplifier module provides a high output, lower power consumption audio solution with great audio quality too.
SKU: Z6407
$21.77
Per ea
QuantityPrice
ea$21.77
2+$19.55
4+$17.41

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The TPA3110 chip on board this amplifier module provides a high output, lower power consumption audio solution with great audio quality too. The compact module measures just 53mm x 45mm with a rotary volume knob. It''s an ideal module for integrating into your own small audio projects.

External Audio Input Switch: Two pads marked SW must be soldered together for external line audio input to activate.


Specifications

Electrical Specifications

  • Supply Voltage: 8-26V DC
  • Recommended Power Supply Current: 2A
  • Output Power: 2x30W (@16V, 8RΩ)
  • Size: 53mm x 45mm

Audio Output

  • Terminal: Speaker/s
  • Impedance: 4 Ohms, 8 Ohms
  • Recommended Power: 10W-20W
