New
RoHS

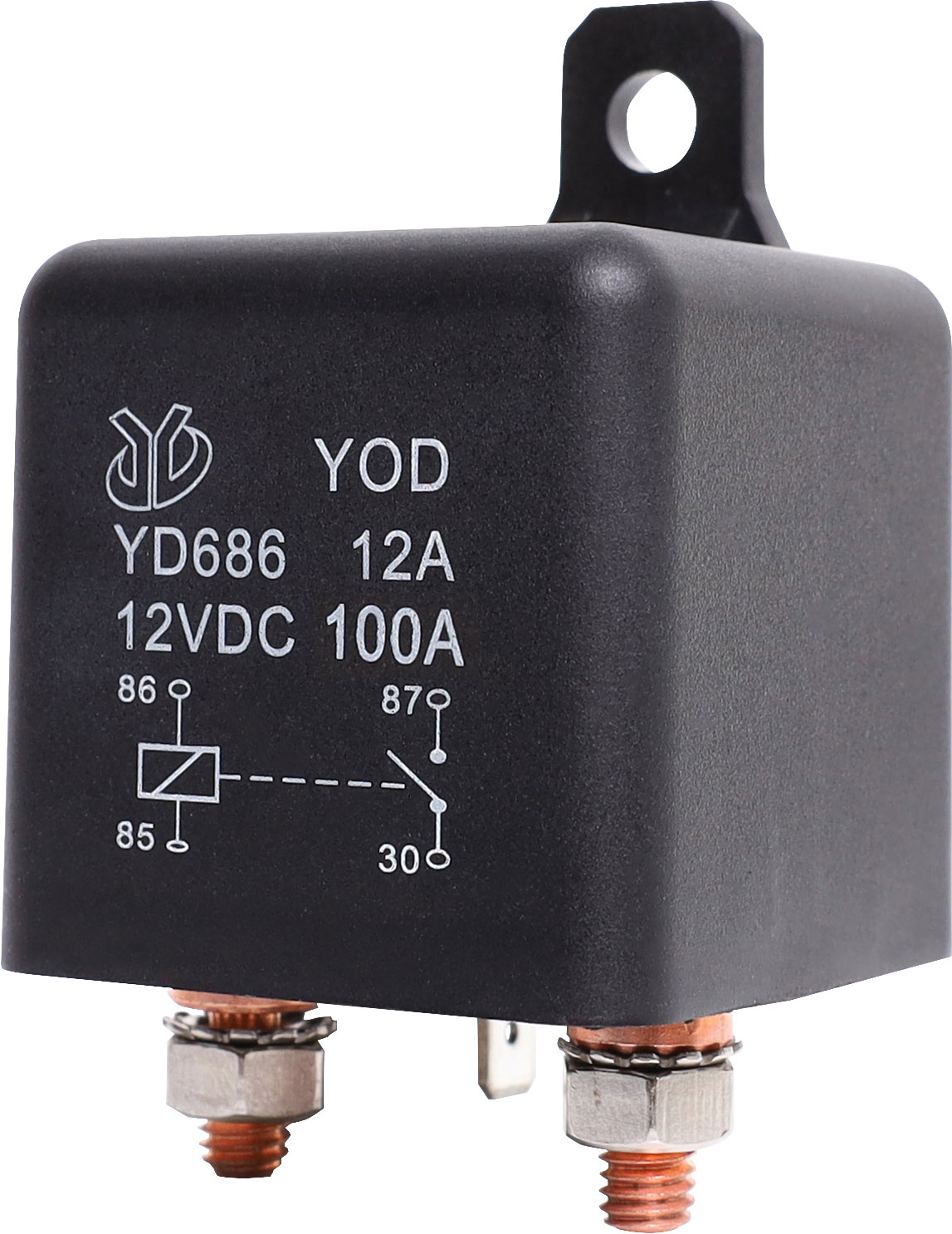

100A 12VDC High Current SPST Automotive Relay

SKU: S4345
Suitable for high current DC automotive applications. Not suitable for AC use. M6 bolt for contact load connection. 6.3mm spade terminals for contact coil connection.
$19.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $19.09
10+ $17.18
40+ $15.27
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Suitable for high current DC automotive applications. Not suitable for AC use. M6 bolt for contact load connection. 6.3mm spade terminals for contact coil connection.

Specifications

Max DC switching: 75V @ 100A / 1400W

  • Contact material: Silver alloy
  • Coil resistance: 60Ω
  • Max coil power: 2.4W
  • Insulation resistance:  >100MΩ @ 500V DC
  • Dielectric strength (for 1 min): 500V AC between open contacts
  • 750V AC between coil & contact
  • Connection: (Coil 6.3mm & M6 bolt for contact load)
  • Life: 100,000 operations electrical, 10 million mechanical
  • Dimensions: ˜46W x 46L x 77H mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
